More than 50,000
FujiClean wastewater treatment systems
are installed around the world each year
Select the appropriate model—CE/CV or PV/PVN—based on the incoming wastewater flow rate and pollutant concentrations.

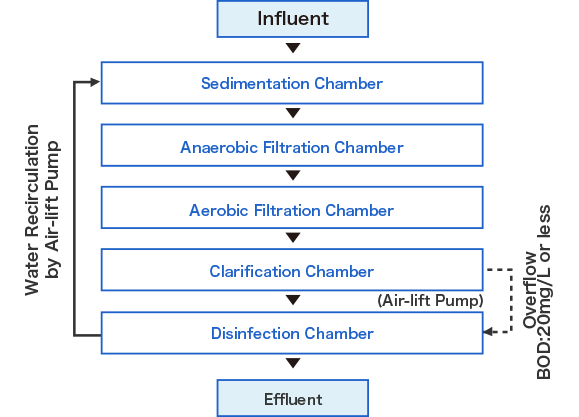

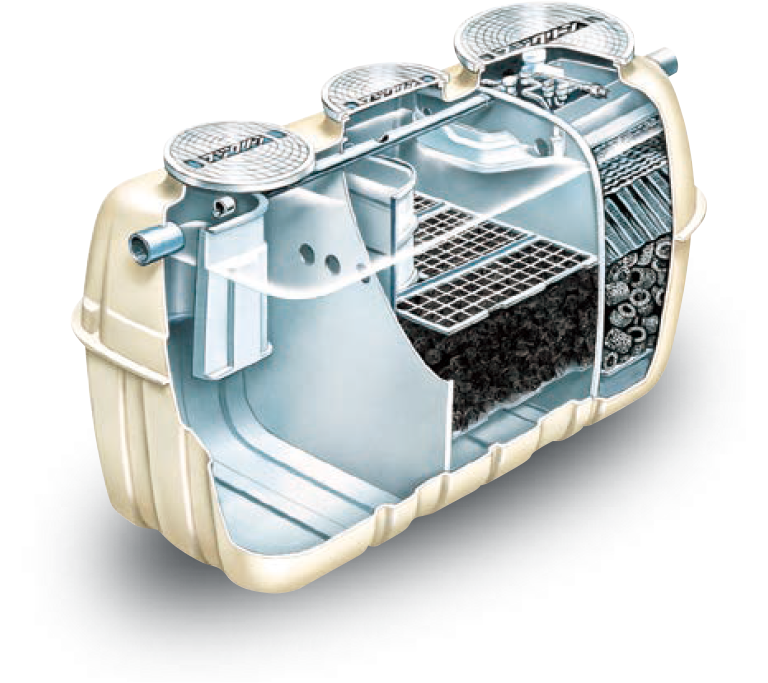

Contact Filtration Media Method
CE Model
CV Model
Design influent loading
BOD
<
200mg/L
SS
<
160mg/L
T-N
<
45mg/L
↓
Design effluent loading
BOD
<
20mg/L
SS
<
20mg/L
T-N
<
20mg/L
Line up
- CE5
- CE7
- CE10
- CV14
- CV18
- CV21
- CV25
- CV30
- CV35
- CV42
- CV50
Select the appropriate model—CE/CV or PV/PVN—based on the incoming wastewater flow rate and pollutant concentrations.
The PVN80 covers flow rates of 10–16 m³/day.

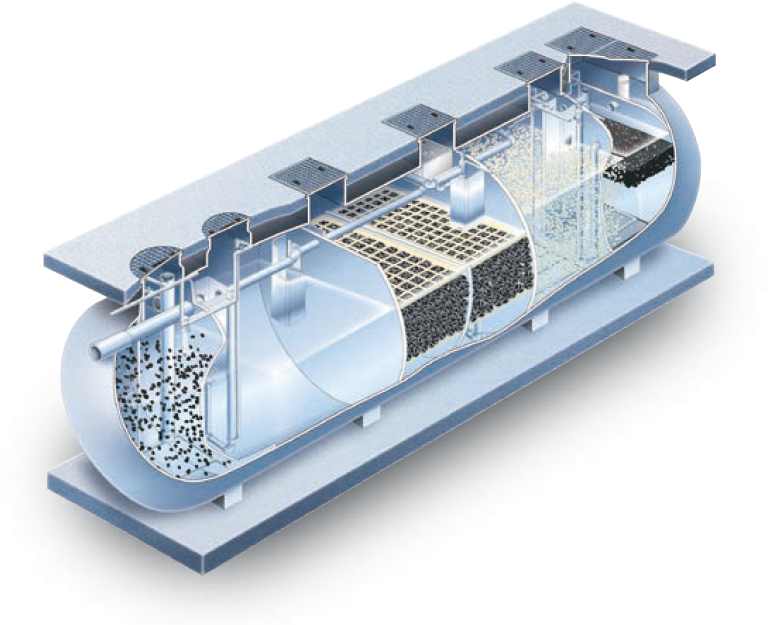

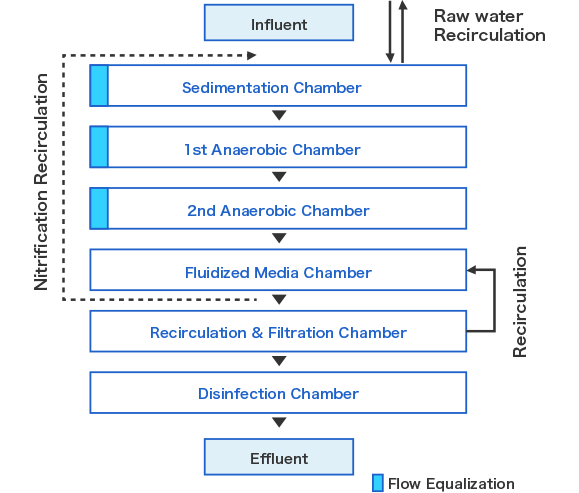

Contact Filtration Media Method

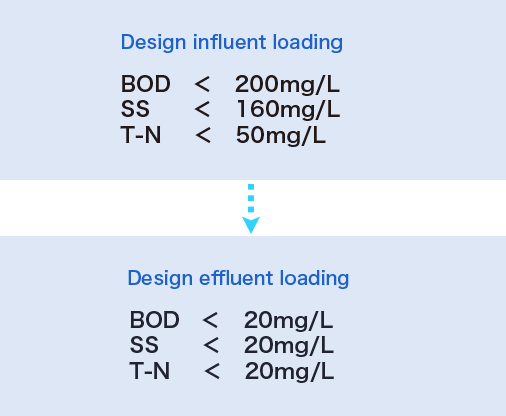

Design influent loading
BOD
<
200mg/L
SS
<
160mg/L
T-N
<
50mg/L
↓
Design effluent loading
BOD
<
20mg/L
SS
<
20mg/L
T-N
<
20mg/L
Line up
- PVN-80
- PVN-160
- PVII 200B

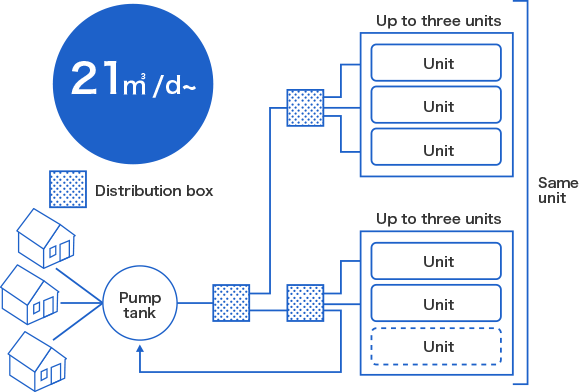

Compact Wastewater Treatment System
One distribution box to every three units
By arranging several tanks and forming one unit, the system can be used as a small-scale wastewater treatment facility.
Products with phosphorus-removal capabilities are also available.
Contact your nearest base for more information.
